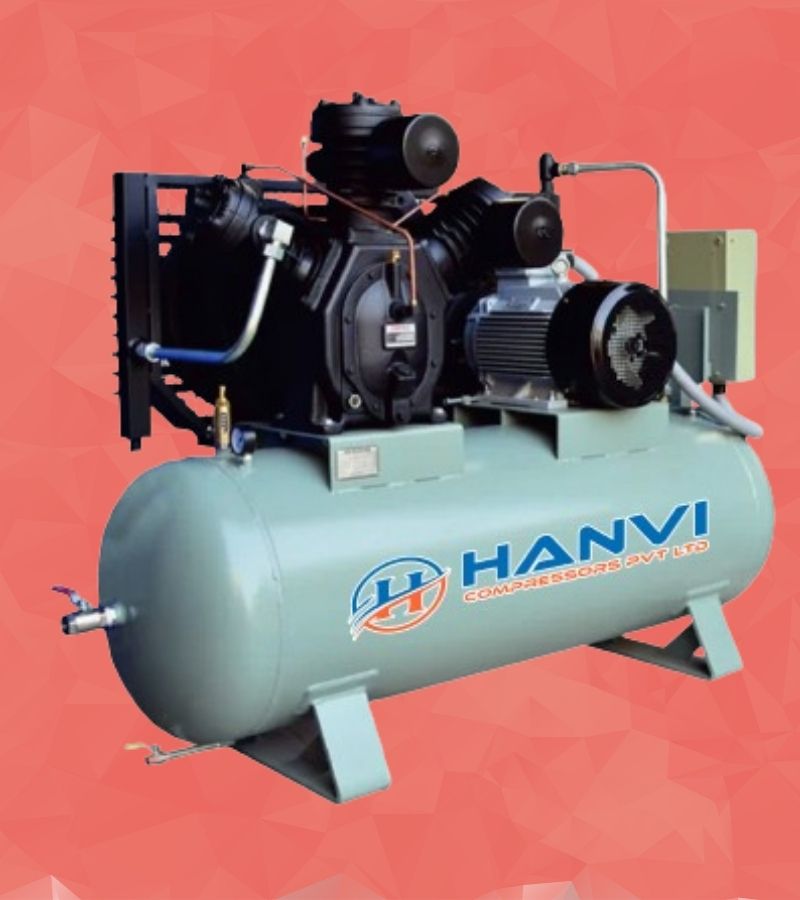

Reciprocating Air Compressor

A Reciprocating Air Compressor is a positive displacement machine designed to deliver high-pressure compressed air with precision and reliability. It operates using a piston-and-cylinder mechanism that draws in air, compresses it, and delivers a steady, powerful output. Known for its robust performance, a reciprocating compressor is ideal for applications that require intermittent, high-pressure air in workshops, automotive garages, small manufacturing units, and specialized industrial processes.

Built with heavy-duty components, the compressor offers excellent durability, strong pressure capability, and low maintenance requirements. Its simple mechanical design ensures easy servicing, high efficiency at low-to-medium flow rates, and consistent performance even in tough working environments. Whether used for pneumatic tools, painting, maintenance work, or industrial machinery, the Reciprocating Air Compressor provides dependable, cost-effective, and long-lasting compressed air solutions.

WHY HANVI COMPRESSORS PVT LTD.

Reciprocating Air Compressor

A Reciprocating Air Compressor works on the principle of piston-driven motion, where a piston moves back and forth inside a cylinder to draw in and compress air. Depending on the application, these compressors are available in single-stage and multi-stage configurations, each stage progressively boosting air pressure for higher efficiency and performance.

Built with strong, industrial-grade components, reciprocating compressors are known for their reliability and ability to withstand demanding workloads. Regular lubrication, valve checks, and routine maintenance help ensure smooth operation and extend service life. With accurate pressure control through switches and regulators, they deliver stable, consistent airflow. Their adjustable pressure settings make them highly versatile, suitable for powering pneumatic tools, workshop machinery, and a wide range of industrial processes.

MODEL	PISTON DISPLACEMENT		FREE AIR DELIVERY		MOTOR		NO OF CYLINDER	AIR RECEIVER TANK
MODEL	LPM	CFM	LPM	CFM	HP	KW
SINGLE -STAGE (MAX PRESSURE 9KG/CM2)
HS-03	360	12.70	255	9.0	3	2.2	2	160
HS-05	606	21.40	442	15.6	5	3.7	2	220
HS-07	923	32.60	708	25.0	7.5	5.5	2	220
HS-10	1229	43.40	949	33.5	10	7.5	2	500
HS-15	1860	65.70	1390	49.1	15	11.0	3	500
TWO -STAGE (MAX PRESSURE 12KG/CM2)
HT-03	303	10.70	249	8.8	3	2.2	2	160
HT-05	501	17.70	411	14.5	5	3.7	2	220
HT-07	702	24.80	583	20.6	7.5	5.5	2	220
HT-10	1002	35.40	852	30.1	10	7.5	3	500
HT-15	1538	54.30	1249	44.1	15	11.0	3	500

High Reliability

Designed with durable internal components and fewer service points, ensuring long-lasting performance and reduced downtime.

Energy Efficient

Delivers the best airflow for its HP range, powered by high-efficiency IE2 motors for optimized energy consumption.

Cost Effective

Provides a low overall life-cycle cost without compromising on performance, durability, or quality.

Heavy-duty industrial design
Low RPM operation for extended life
Pressure switch with unloader mechanism
Fully enclosed belt guard for safety
Inter-stage pressure relief valve
Sturdy air receiver tank
