Accessories

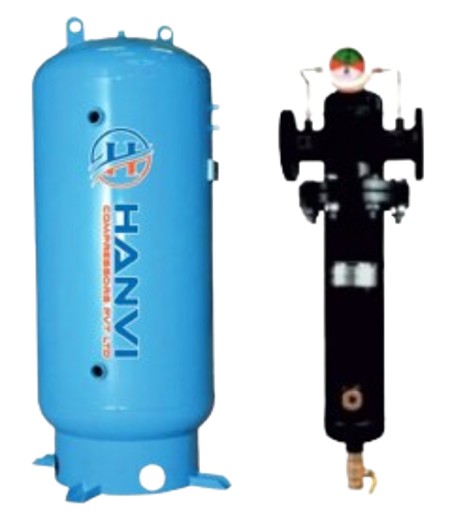

Pneumatic systems require air receivers and line filters as essential parts to increase longevity and efficiency. Line filters eliminate impurities, protecting equipment and enhancing air quality, while air receivers hold compressed air, guaranteeing a consistent supply during periods of high demand. Our cutting-edge designs put longevity, effectiveness, and safety first, satisfying a variety of industrial demands with dependability and precise engineering.
👉Pressure Regulation
👉Contaminant Removal
👉Improved Air Quality
Contact Us

WHY HANVI COMPRESSORS PVT LTD.

Accessories

Air Storage: Receivers store compressed air to meet fluctuating demand, ensuring consistent supply during peak usage.

Pressure Regulation: They regulate pressure fluctuations, preventing damage to equipment and ensuring stable performance.

Moisture Removal: Line filters remove moisture from compressed air, preventing corrosion and extending the lifespan of equipment.

Particle Filtration: Filters trap contaminants like dust and oil, maintaining air quality and protecting downstream equipment.

Improved Efficiency: By maintaining clean, dry air, receivers and filters enhance system efficiency, reducing energy consumption and operating costs.

Compliance and Safety: Properly functioning receivers and filters ensure compliance with safety standards, minimizing risks of equipment failure and accidents.

Filters

MODEL END CONNECTION FLOW RATES WEIGHT
cfm m3/h Kg
HF01 G 3/8 18 31 1.2
HF02 G 3/8 35 59 1.3
HF03 G 1/2 53 90 1.5
HF04 G 1/2 70 119 1.6
HF05 G 3/4 105 178 1.8
HF06 G 1 125 212 1.8
HF07 G 1 160 272 2.5
HF08 G 1 1/4 210 357 2.7
HF09 G 1 1/2 280 476 5
HF10 G 2 420 714 6
HF11 G 2 620 1053 28
HF12 G 2 1/2 840 1427 33
HF13 G 3 1120 1903 40
HF14 G 4 1700 2888 80
HF15 G 4 2540 4315 80
HF16 G 4 3300 5607 90

Receiver Tank

MODEL CAPACITY FLOW MAX WORKING PRESSURE END CONNECTIONS
ltr. m3/min bar g
HAR 020 500 0.5 7-13 1 1/2" NPT
HAR 040 1000 1 7-13 2" NB FLG
HAR 060 1500 1.15 7-13 2" NB FLG
HAR 080 2000 2 7-13 2" NB FLG
HAR 120 3000 3 7-13 2" NB FLG
HAR 160 4000 4 12.5 4" NB FLG
HAR 200 5000 5 12.5 4" NB FLG
product

TYPE PF

High efficiency General Purpose Protection

For the removal of particles down to 1 micron including coalesced liquid water and oil, providing a maximum remaining oil aerosol content of 0.5 mg/m² @ 21°C.

product

TYPE FF

High Efficiency Oil Removal Filtration

For the removal of particles down to 0.01 micron including water and oil aerosols, providing a maximum remaining oil aerosol c ontent of 0.01 mg/m² @ 21°C. (Precede type FF with type PF)

product

TYPE CF

Activated Carbon Filtration

For the removal of oil vapour and hydrocarbon odour giving a maximum remaining oil content of <0.003 mg/m³ (<0.003 ppm) (excluding methane) @ 21°C. (Precede type CF with type FF & PF)
