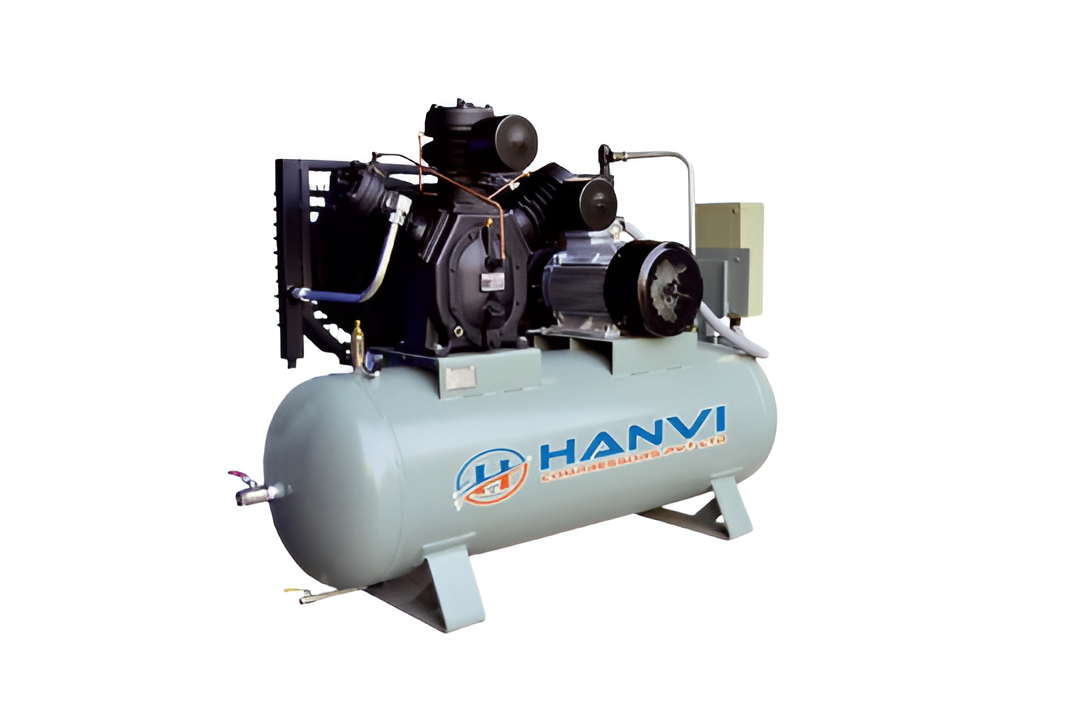

Reciprocating Air compressor

The piston-cylinder mechanism of a reciprocating air compressor compresses air. Air is drawn into the cylinder by the piston as it descends. The compressed air is forced out through a discharge valve as it rises. Repeating this technique creates a constant compressed air flow. Because of their versatility, these compressors are employed in many different industries for jobs like tire inflation, pneumatic tool powering, and air supply for industrial operations. They are invaluable in many applications due to their effectiveness, robustness, and versatility.
👉High Efficiency
👉Durable Construction
👉Variable Pressure Control
Contact Us

WHY HANVI COMPRESSORS PVT LTD.

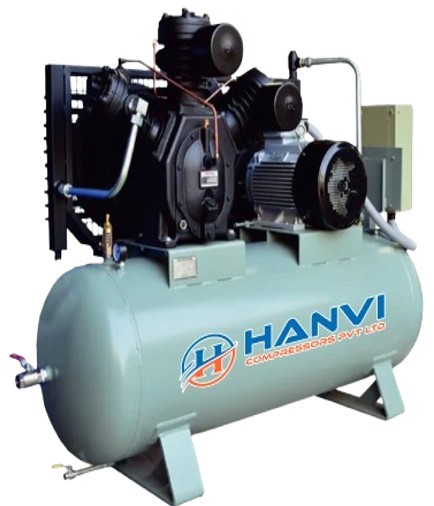

Reciprocating Air compressor

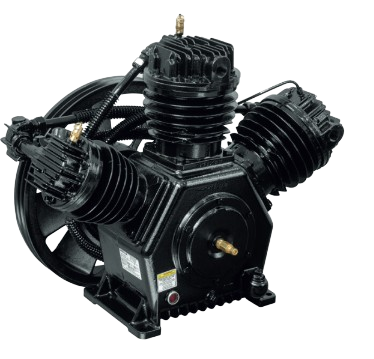

Reciprocating Action: It operates on the principle of reciprocating motion, where a piston moves back and forth within a cylinder to compress air.

Compression Stages: Typically, it can have single or multiple compression stages, where each stage increases the pressure of the air.

Maintenance Requirements: Regular maintenance, including lubrication of moving parts and inspection of valves, is essential to ensure optimal performance and longevity.

Durability: Known for its robust construction, it's capable of handling heavy-duty applications, making it suitable for industrial environments.

Controlled Output: Offers precise control over air output through mechanisms like pressure switches and regulators, ensuring consistent performance.

Versatility: Adaptable to various tasks, from powering pneumatic tools to supplying compressed air for industrial processes, owing to its adjustable pressure settings.

MODEL PISTON DISPLACEMENT FREE AIR DELIVERY MOTOR NO OF CYLINDER AIR RECEIVER TANK
LPM CFM LPM CFM HP KW
SINGLE -STAGE (MAX PRESSURE 9KG/CM2)
HS-03 360 12.7 255 9 3 2.2 2 160
HS-05 606 21.4 422 15.6 5 3.7 2 220
HS-07 923 32.6 708 25 7.5 5.5 2 220
HS-10 1229 43.4 949 33.5 10 7.5 2 500
HS-15 1860 65.7 1390 49.1 15 11 3 500
TWO -STAGE (MAX PRESSURE 12KG/CM2)
HT-03 303 10.7 249 8.8 3 2.2 2 160
HT-05 501 17.7 411 14.5 5 3.7 2 220
HT-07 702 24.8 583 20.6 7.5 5.5 2 220
HT-10 1002 35.4 852 30.1 10 7.5 3 500
HT-15 1538 54.3 1249 44.1 15 11 3 500

High reliability

Robust internal parts and lesser service points of the compressor

Energy efficient

Best in class flow for specified HP with high efficiency IE2 Motors

Cost effective

Offers low life cycle cost with zero compromise on performance and quality

Key product features

👉Industrial duty rating
👉Slow running speed
👉Pressure switch with unloader
👉Totally enclosed belt guard
👉Inter stage pressure relief valve
👉Air receiver

Benefits

👉No stand-by compressor required
👉Low wear & tear
👉Easy starting and increased motor life
👉Provides extra safety
👉Full protection against accidents
👉Totally safe & 100% assured capacity as per standards
