Two stage Screw compressor

An inventive engineering marvel that boosts productivity in industrial applications is the two-stage screw compressor. It achieves greater pressure ratios with less energy use by compressing air twice. Its distinctive design guarantees steady performance over time by lowering leakage and enhancing dependability. For harsh conditions where accurate air compression is essential, this compressor is perfect. The Two-stage Screw Compressor provides unmatched efficiency, dependability, and versatility for a range of industrial processes thanks to its sophisticated technology and sturdy construction.
👉Enhanced Efficiency
👉Improved Reliability
👉Enhanced Performance
Contact Us

WHY HANVI COMPRESSORS PVT LTD.

Two stage Screw compressor

Dual Compression Stages: Utilizes two compression stages to achieve higher pressures than single-stage compressors, enhancing efficiency and performance.

Interstage Cooling: Incorporates interstage cooling between the stages to reduce temperature and improve volumetric efficiency, ensuring optimal compression.

Oil Injection: Employs oil injection for lubrication and sealing, enhancing reliability and minimizing wear on internal components.

Rotary Screw Design: Features a rotary screw design for continuous, smooth operation, reducing vibration and noise levels.

Variable Speed Control: Offers variable speed control for precise adjustment of output according to demand, optimizing energy efficiency.

Wide Application Range: Suitable for a wide range of industrial applications, including manufacturing, automotive, aerospace, and more, providing reliable compressed air or gas supply.

MODEL MOTOR FREE AIR DELIVERY WORKING PRESSURE AIR OUTLET NOISE LEVEL DIMENSIONS WEIGHT
KW HP CFM M3/Min Bar dB(A) (L*W*H) Kg
HSC-30TS 22 30 1.85-4.1 65-144 8 G2 65+3 1860*1180*1430 1500
22 30 1.65-3.4 58-120 10 G2 65+3 1860*1180*1430 1500
HSC-50TS 37 50 2.3-7.7 82-271 8 G2 65+3 1860*1180*1430 1800
37 50 1.9-6.9 64-243 10 G2 65+3 1860*1180*1430 1800
HSC-60TS 45 60 3.2-10.5 112-370 8 G2 65+3 1860*1180*1430 2000
45 60 2.2-7.8 77-275 10 G2 65+3 1860*1180*1430 2000
45 60 2.5-6.1 88-215 13 G2 65+3 1860*1180*1430 2000
HSC-75TS 55 75 3.9-13.2 137-466 8 G2 65+3 2160*1350*1750 2450
55 75 3.1-10.7 110-377 10 G2 65+3 2160*1350*1750 2450
55 75 2.6-8.81 92-310 13 G2 65+3 2160*1350*1750 2450
HSC-100TS 75 100 5.0-16.8 176-593 8 G2 68+3 2160*1350*1750 2550
75 100 4.1-13.8 144-487 10 G2 68+3 2160*1350*1750 2550
75 100 3.6-12.3 127-434 13 G2 68+3 2160*1350*1750 2550
HSC-120TS 90 120 6.0-20.1 212-709 8 21/2" 70+3 2420*1530*1720 3250
90 120 5.2-17.3 184-610 10 21/2" 70+3 2420*1530*1720 3250
90 120 4.8-15.9 169-561 13 21/2" 70+3 2420*1530*1720 3250
HSC-150TS 110 150 7.1-23.5 251-830 8 3" 72+3 2650*1600*1850 3600
110 150 5.9-19.8 208-699 10 3" 72+3 2650*1600*1850 3600
110 150 5.3-17.8 187-629 13 3" 72+3 2650*1600*1850 3600
HSC-175TS 132 175 8.0-28.1 283-992 8 3" 74+3 2650*1600*1850 3700
132 175 7.3-24.3 258-858 10 3" 74+3 2650*1600*1850 3700
132 175 6.1-20.2 215-713 13 3" 74+3 2650*1600*1850 3700
HSC-215TS 160 215 10.1-33.6 357-1187 8 4" 75+3 3350*1900*1950 4250
160 215 9.2-30.5 325-1077 10 4" 75+3 3350*1900*1950 4250
160 215 8.4-28.0 297-989 13 4" 75+3 3350*1900*1950 4250
HSC-250TS 185 250 12.4-38.7 438-1367 8 4" 76+3 3350*1900*1950 4650
185 250 10.4-34.8 367-1229 10 4" 76+3 3350*1900*1950 4650
185 250 9.7-32.3 343-1141 13 4" 76+3 3350*1900*1950 4650
HSC-270TS 200 270 12.8-42.6 452-1504 8 4" 76+3 3350*1900*1950 5550
200 270 12.2-40.5 431-1430 10 4" 76+3 3350*1900*1950 5550
200 270 10.6-35.1 374-1239 13 4" 76+3 3350*1900*1950 5550
HSC-300TS 220 300 14.2-47.3 502-1670 8 4" 78+3 3700*2060*2150 5650
220 300 12.8-42.5 452-1501 10 4" 78+3 3700*2060*2150 5650
220 300 12.0-37.4 424-1321 13 4" 78+3 3700*2060*2150 5650
HSC-350TS 250 350 18.2-52.8 653-1864 8 4" 78+3 3700*2060*2150 6450
250 350 15.1-48.3 533-1706 10 4" 78+3 3700*2060*2150 6450
250 350 13.3-43.0 470-1518 13 4" 78+3 3700*2060*2150 6450

👉Compressors are often considered as "Second utility" of many segments like "foundry, textile, ceramic, cement, plastic, power, plants, laminates plastics, pharma etc. Every industry has compressed air system, so vital that facilities cannot operate without it.
👉Air compressor uses more electricity than any other type of equipment. Inefficiency of Compressor cannot be ignored.
👉Two stage screw compressor improves energy saving by 20-25% with higher flow output at same power ratin.

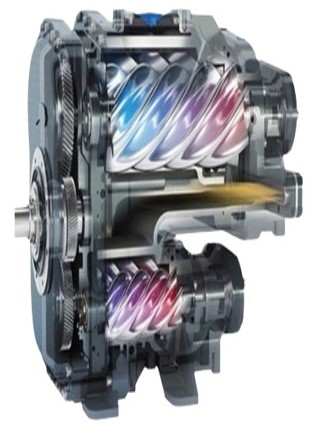

👉 Two-stage compression reduces the compression ratio of each stage, reduces internal leakage, improves volumetric efficiency, reduces bearing load.
👉 Two-stage PM VSD replaces single-stage compression, and the displacement is increased by nearly 15%, which can achieve an additional 15% energy saving effect.
👉 The rotor adopts the latest patented rotor UV profile, which has been refined by more than 20 procedures to ensure the accura reliability, and effectiveness of the rotor profile.

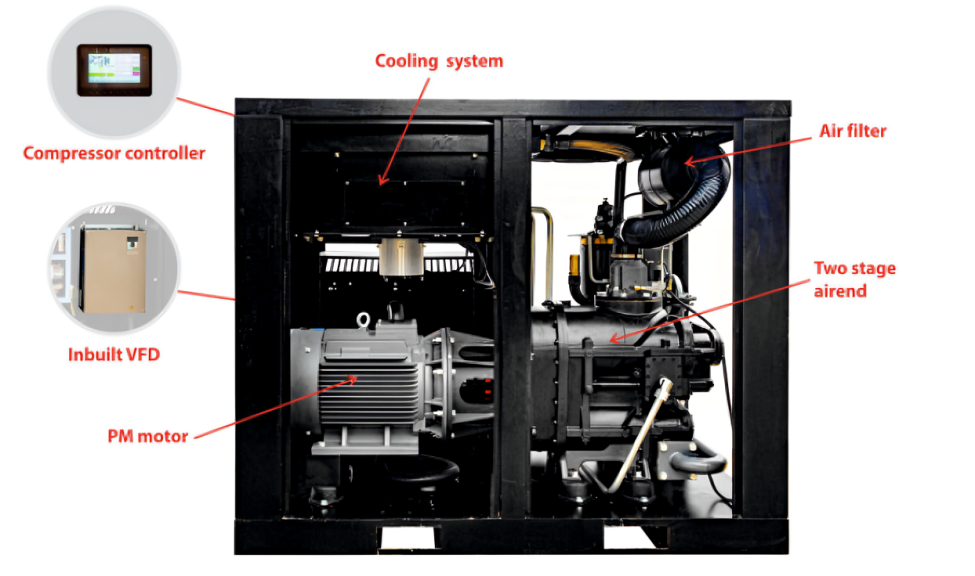

👉 Two-stage PM VSD air compressor mainframe is more efficient a more energy-saving. It can save up to 40% energy compared with ordinary industrial frequency machines.
👉 More comfortable, Low noise and low vibration. No motor and bearing noise, no gear noise, no coupling noise
👉 More Compact, The PM VSD motor is small in size, and the integrated structure saves space.
