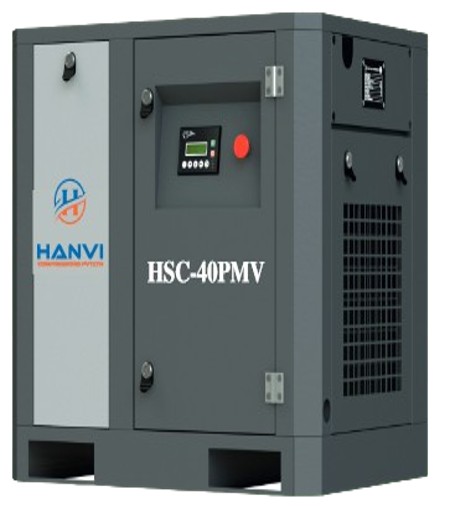

Rotary type Screw variable speed

Innovative solutions for specific air compression requirements are rotary type screw variable speed compressors. They provide unparalleled efficiency with its variable speed technology, which matches output to demand and saves energy and operating expenses. These compressors provide constant performance in a range of applications and are known for their dependability and longevity. Because of their adaptability, they are perfect for industries where a flexible air supply is necessary to ensure maximum output. Rotating screw variable speed compressors, which embrace state-of-the-art engineering, are the ultimate in air compression technology, providing unmatched efficacy in meeting changing industrial demands.
👉Efficient operation
👉Consistent performance
👉Extended lifespan
Contact Us

WHY HANVI COMPRESSORS PVT LTD.

Rotary type Screw variable speed

Energy Efficiency: Variable speed control adjusts motor speed to match air demand, reducing energy consumption during low-demand periods.

Constant Pressure: Maintains steady air pressure, enhancing equipment performance and minimizing production disruptions.

Flexibility: Adaptable to fluctuating air demand, ensuring optimal operation across varying workloads.

Longer Equipment Lifespan: Reduced wear and tear on components due to smoother operation and less frequent cycling.

Quiet Operation: Variable speed control reduces noise levels compared to fixed-speed compressors, creating a more comfortable work environment.

Cost Savings: Lower energy consumption and reduced maintenance requirements result in long-term cost savings for businesses.

MODEL MOTOR FREE AIR DELIVERY WORKING PRESSURE AIR OUTLET NOISE LEVEL DIMENSIONS WEIGHT
KW HP CFM M3/Min Bar dB(A) (L*W*H) Kg
HSC-10F 7.5 10 42 1.20 7 3/4'' 60±2 900*600*800 220
39 1.10 8
33 0.93 10
28 0.80 12
HSC-15F 11 15 71 2.01 7 1" 62±2 1100*730*980 350
64 1.81 8
56 1.60 10
49 1.40 12
HSC-20F 15 20 98 2.78 7 1" 62±2 1100*730*980 360
91 2.58 8
83 2.35 10
74 2.10 12
HSC-25F 18.5 25 121 3.43 7 1" 64±2 1200*880*1080 510
114 3.23 8
98 2.78 10
85 2.40 12
HSC-30F 22 30 143 4.05 7 1" 64±2 1200*880*1080 510
139 3.94 8
117 3.31 10
98 2.78 12
HSC-40F 30 40 203 5.75 7 1 1/2" 66±2 1460*980*1230 650
186 5.27 8
174 4.93 10
147 4.16 12
HSC-50F 37 50 252 7.14 7 1 1/2" 66±2 1460*980*1230 700
239 6.77 8
210 5.95 10
189 5.35 12
HSC-60F 45 60 308 8.73 7 1 1/2" 66±2 1460*980*1230 780
284 8.05 8
263 7.45 10
225 6.37 12
HSC-75F 55 75 382 10.82 7 2" 68±2 1750*1280*1590 1250
357 10.11 8
330 9.35 10
268 7.60 12
HSC-100F 75 100 520 14.73 7 2" 68±2 1750*1280*1590 1350
495 14.02 8
454 12.86 10
394 11.16 12
HSC-125F 90 125 572 16.20 7 2" 70±2 2450*1660*1700 1950
530 15.00 8
487 13.80 10
434 12.30 12
HSC-150F 110 150 741 21.00 7 2 1/2" 70±2 2450*1660*1700 2200
699 19.80 8
614 17.40 10
522 14.80 12
HSC-175F 132 175 865 24.50 7 2 1/2" 70±2 2450*1660*1700 2500
819 23.20 8
724 20.50 10
614 17.40 12

INVERTER

👉The standard is equipped with high frequency reactor, effectively reducing the frequency converter and the external magnetic field dry reactance.
👉Reliably reduces peak current when it is started, realizes stable starting.
👉 With high-performance current vector technology, it can easily drive induction motors.
👉 High performance, high quality and high power density design,
👉Rapidly track the change of pressure and control pressure fluctuation within ±0.01Mpa,optimal power is used to accurately provide necessary air.

AIR-END

👉The standard is equipped with high frequency reactor, effectively reducing the frequency converter and the external magnetic field dry reactance.
👉Reliably reduces peak current when it is started, realizes stable starting.
👉 With high-performance current vector technology, it can easily drive induction motors.
👉 High performance, high quality and high power density design,
👉Rapidly track the change of pressure and control pressure fluctuation within ±0.01Mpa,optimal power is used to accurately provide necessary air.

MOTOR

👉The motor uses high-performance motors use high-performance NdFeB permanent magnets which will not lose magnetism under 200° and its service life reaches as long as 15 years.
👉Protection grade IP55, insulation grade F, effectively protects the motor and increases the service life of the motor, the efficiency is 5%-7% higher than similar products.

CONTROLLER

👉Adopts PLC multi-language Contorl system, beeautiful and intuitive interface, easy to operate function, operators can quickly and easily adjust the compressor.
👉14 protection functions such as overload protecton, short circuit protection, reverse protection, low temperature protection, high voltage protection, etc. to fully protect the unit

The adoption of permanent magnet motors can lead to significant power-saving benefits across various industries and applications, making them a compelling choice for those seeking to improve energy efficiency.

Features:

👉 Higher efficiency since no electrical energy is used or lossses incurred for developing or maintaining the motors magnetic field * Intelligent Control System
👉 Less bearing current due to large air gap
👉 The Latest Generation Super Stable Inverter
👉 Wide Working Frequency Range To Save Energy
👉 Small Start-up Impact
👉 low temperature due to less rotor losses
👉 Low Noise
👉 Ramp up time, shorter, constant power up to maximum speed.
